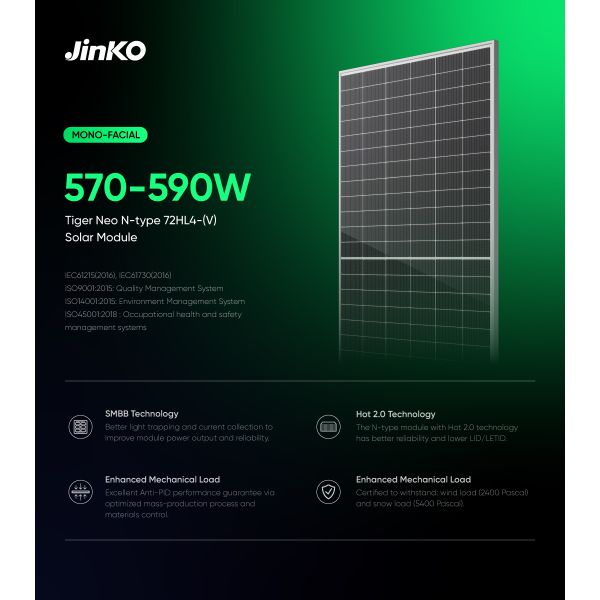

Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels

Name: Jinko N Type a Grade 72HL4V Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Brand: Jinko Solar
Price: 0.09 USD

Quality Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels for sale

Brand Name : Jinko Solar

Model Number : Tiger Neo N-type 72HL4-BDV 570-590

Place of Origin : Guangdong, China

Cell size : 182mmx182mm

Type : PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON

Panel Dimensions : 2278*1134*35

Panel Efficiency : 23%

Cell Type : N type Mono-crystalline

No. of cells : 144 (6*24)

Front Side Glass : High transparency solar glass 2.0mm

Frame : Anodized Aluminium Alloy

Junction Box : IP68 Rated, 3 Diodes

Cable : 4.0mm2, Portrait: 300mm / Landscape: 1200mm

Wind/Snow Load : 2400Pa/5400Pa

Connector : MC Compatible

Application : Residencial,Commercial & Industry

Certificate : CE TUV IEC

MOQ : 5000 watts

Price : $0.09-0.12 / watt

Contact Now

Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels

Product Description

Product Parameter

Module Type: JKMxxxN-72HL4M	570	575	580	585	590
Maximum Power (Pmax/W)	570	575	580	5585	590
Maximum Power Voltage (Vmp/V)	42.99	43.17	43.35	43.53	43.71
Maximum Power Current (Imp/A)	13.26	13.32	13.38	13.44	13.50
Open-circuit Voltage (Voc/V)	51.99	52.15	52.31	52.47	52.63
Short-circuit Current (Isc/A)	13.89	13.95	14.01	14.07	14.13
Module Efficiency STC (%)	22.07	22.26	22.45	22.65	22.84
Operating Temperature	-40°C~+85°C
Maximum system voltage	1500VDC (IEC)
Maximum series fuse rating	30A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.29%/°C
Temperature coefficients of Voc	-0.25%/°C
Temperature coefficients of Isc	-0.45%/°C
Refer. Bifacial Factor	80±5%

Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels Images
