High Power 120KW 160KW 180KW 240KW 360KW 400KW Fast DC EV Commercial Electric Charging Station Charging Power Stations

Name: High Power 120KW 160KW 180KW 240KW 360KW 400KW Fast DC EV Commercial Electric Charging Station Charging Power Stations
Brand: DAWN
Price: 7 USD

Quality High Power 120KW 160KW 180KW 240KW 360KW 400KW Fast DC EV Commercial Electric Charging Station Charging Power Stations for sale

Purpose : for retrofit/upgrade

Condition : New

Place of Origin : Guangdong, China

Model Number : DL-FCA400KW

Brand Name : DAWN

Interface Standard : CCS-1/CCS-2/CHAdeMO / GB/T

Output Current : 0-250A

Output Power : 7KW-720KW

Input Voltage : 380V

Product name : DC EV Charging Station

Power : 7KW-720KW

Socket Stardard : CCS-1/CCS-2/CHAdeMO / GB/T

Application : Charging Electric Car Charging

Type : DC Fast EV Charger

Certificate : CE FCC ROHS IK10

Cable length : 5M(Customizable)

Warranty : 2 Years

Usage : Charge EV Car

Output voltage : 200~750V DC

MOQ : 2 pieces

Price : $7,528-8,288 / piece

Contact Now

High Power 120KW 160KW 180KW 240KW 360KW 400KW Fast DC EV Commercial Electric Charging Station Charging Power Stations

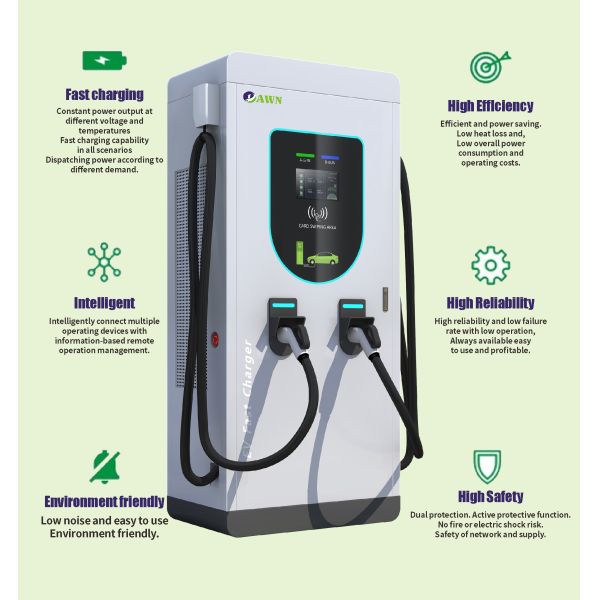

--Managing system for observing charging data, warning informations and history etc.

--Electric EV car charging stations with CCS 1, CCS 2, GB/T, ChAdeMo plug to charge cars.

--Screens show EV car charger electricity consumption, current, voltage, hours etc.
--App control start and stop EV cars charging, make appointment for charging.
--Self adjustable voltage & current to coordinate with ev cars' BMS.(200-1000V, 200-750V, 0-250A)

--Built in type C type B RCD leakage protection: detect all leakages from cars.
--Customize logo, language, manual, RFID card for ev charging stations.

Product Parameter

Models	DL-FCA60KW	DL-FCA80KW	DL-FCA120KW	DL-FCA160KW	DL-FCA180KW	DL-FCA240KW	DL-FCA360KW	DL-FCA400KW
Rated Power	60KW	80KW	120KW	160KW	180KW	240KW	360KW	400KW
Dimension	6403201600mm			7005001700mm
Input Voltage Range	380V±15% (3 Phase)
Output Voltage Range	200V-750VDC
Cooling Method	Forced air cooling
Working Temp	-25-55℃
Communication	Ethernet/2G/3G/4G/WIFI (Optional)
IP Rating	IP54
Working Humidity	5%-95%
Installation	Floor mounted
Display	7 inch touch screen
Welcome to contact us by WhatsApp +86 184 7691 5685(Jack)

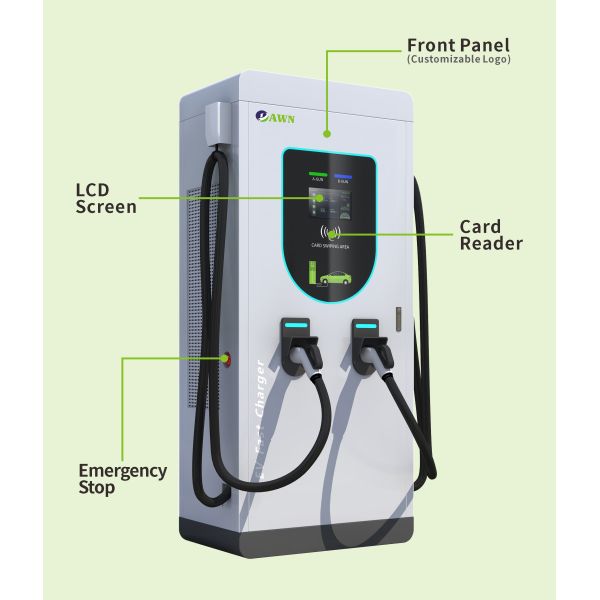

Detailed Photo

High Power 120KW 160KW 180KW 240KW 360KW 400KW Fast DC EV Commercial Electric Charging Station Charging Power Stations

Applications

Production Line

Testing Equipment

Packaging & Shipping

Certifications

FAQ

Q: Are you trading company or manufacturer?
A: We are original factory with more than 10 years' experiences.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 2 years, if there's any quality problem during warranty period, we can send new components as replacement.

Q: Can I order samples to test?
A: Yes,we can sell samples to you.

Q: Do you accept OEM/ODM?
A: Yes,warmly welcome.

Q:How long for lead time?
Samples is 3-7 days and bulk order is 10-25 days.

Q: What kind of certificates do you have?
A: ISO,CE,RoHS,etc.

Q: What is your term of payment?
A: We accept T/T,PayPal,Western Union and so on.
